XX项目海外定制无法注网问题分析
XX项目海外Entel等定制版本，之前在其它项目未做过，MBN默认使用IR92配置，其它部分NV不全，导致手机无法自动发起IMS注网。
通过QCAT分析注网时的LOG：
Entel ims volte注网1.BS<<<MS编辑本段

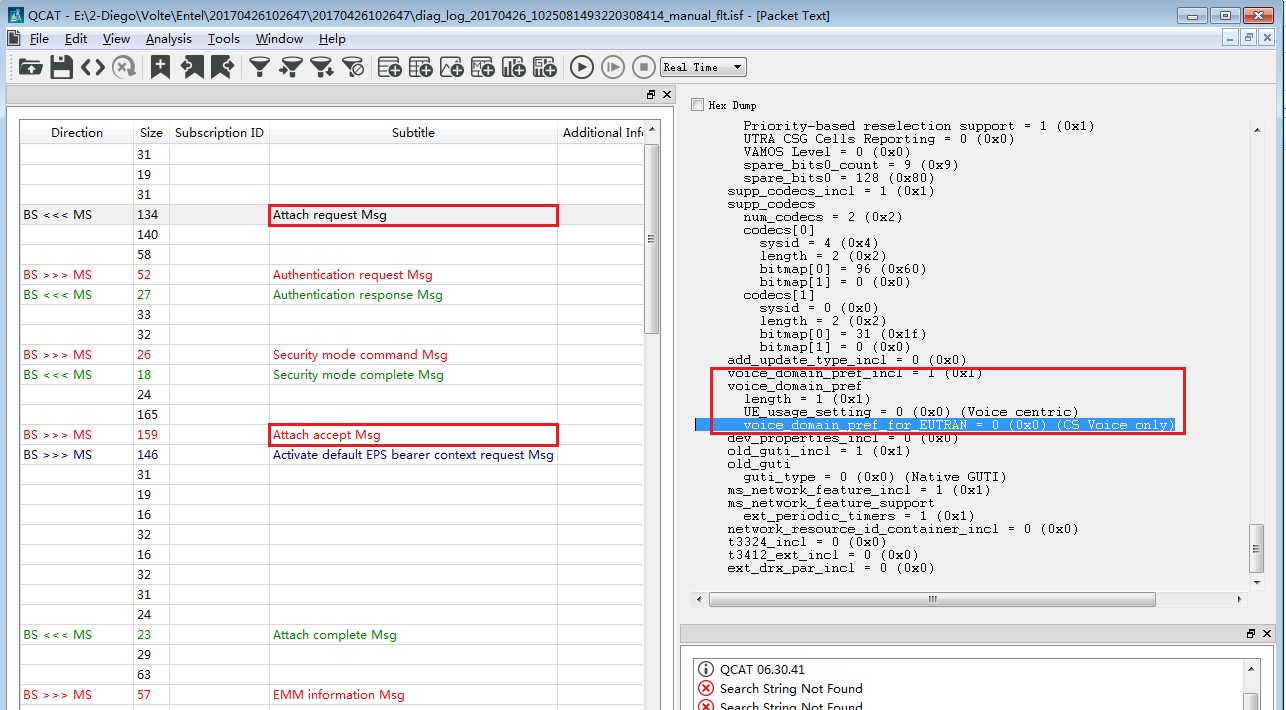

终端在注册的时候 attach reqeust会告诉网络终端是否支持IMS，voice_domain_pref_for_EUTRAN = 0 (0x0) (CS Voice only)，因而无法发起IMS注网。
2017 Apr 26 15:25:33.258 [A0] 0xB0ED LTE NAS EMM Plain OTA Outgoing Message -- Attach request Msg
pkt_version = 1 (0x1)
rel_number = 9 (0x9)
rel_version_major = 5 (0x5)
rel_version_minor = 0 (0x0)
security_header_or_skip_ind = 0 (0x0)
prot_disc = 7 (0x7) (EPS mobility management messages)
msg_type = 65 (0x41) (Attach request)
lte_emm_msg
emm_attach_request
tsc = 0 (0x0) (cached sec context)
nas_key_set_id = 6 (0x6)
att_type = 2 (0x2) (combined EPS/IMSI attach)
eps_mob_id
id_type = 6 (0x6) (GUTI)
odd_even_ind = 0 (0x0)
Guti_1111 = 15 (0xf)
mcc_1 = 7 (0x7)
mcc_2 = 1 (0x1)
mcc_3 = 6 (0x6)
mnc_3 = 15 (0xf)
mnc_1 = 1 (0x1)
mnc_2 = 7 (0x7)
MME_group_id = 32769 (0x8001)
MME_code = 16 (0x10)
m_tmsi = 3397535823 (0xca82484f)
ue_netwk_cap
EEA0 = 1 (0x1)
EEA1_128 = 1 (0x1)
EEA2_128 = 1 (0x1)
EEA3_128 = 1 (0x1)
EEA4 = 0 (0x0)
EEA5 = 0 (0x0)
EEA6 = 0 (0x0)
EEA7 = 0 (0x0)
EIA0 = 0 (0x0)
EIA1_128 = 1 (0x1)
EIA2_128 = 1 (0x1)
EIA3_128 = 1 (0x1)
EIA4 = 0 (0x0)
EIA5 = 0 (0x0)
EIA6 = 0 (0x0)
EIA7 = 0 (0x0)
oct5_incl = 1 (0x1)
UEA0 = 1 (0x1)
UEA1 = 1 (0x1)
UEA2 = 0 (0x0)
UEA3 = 0 (0x0)
UEA4 = 0 (0x0)
UEA5 = 0 (0x0)
UEA6 = 0 (0x0)
UEA7 = 0 (0x0)
oct6_incl = 1 (0x1)
UCS2 = 0 (0x0)
UIA1 = 1 (0x1)
UIA2 = 0 (0x0)
UIA3 = 0 (0x0)
UIA4 = 0 (0x0)
UIA5 = 0 (0x0)
UIA6 = 0 (0x0)
UIA7 = 0 (0x0)
oct7_incl = 1 (0x1)
ProSedd = 0 (0x0)
ProSe = 0 (0x0)
H_245_ASH = 0 (0x0)
ACC_CSFB = 1 (0x1)
LPP = 1 (0x1)
LCS = 0 (0x0)
vcc_1xsr = 0 (0x0)
NF = 1 (0x1)
oct8_incl = 0 (0x0)
oct9_incl = 0 (0x0)
oct10_incl = 0 (0x0)
oct11_incl = 0 (0x0)
oct12_incl = 0 (0x0)
oct13_incl = 0 (0x0)
oct14_incl = 0 (0x0)
oct15_incl = 0 (0x0)
esm_msg_container
eps_bearer_id_or_skip_id = 0 (0x0)
prot_disc = 2 (0x2) (EPS session management messages)
trans_id = 12 (0xc)
msg_type = 208 (0xd0) (PDN connectivity request)
lte_esm_msg
pdn_connectivity_req
pdn_type = 3 (0x3) (Ipv4v6)
req_type = 1 (0x1) (initial request)
info_trans_flag_incl = 0 (0x0)
access_pt_name_incl = 0 (0x0)
prot_config_incl = 1 (0x1)
prot_config
ext = 1 (0x1)
conf_prot = 0 (0x0)
num_recs = 1 (0x1)
sm_prot[0]
protocol_id = 32801 (0x8021) (IPCP)
prot_len = 16 (0x10)
ipcp_prot
ipcp_prot_id = 1 (0x1) (CONF_REQ)
identifier = 0 (0x0)
rfc1332_conf_req
num_options = 2 (0x2)
conf_options[0]
type = 129 (0x81)
rfc1877_primary_dns_server_add
length = 6 (0x6)
ip_addr = 0 (0x0) (0.0.0.0)
conf_options[1]
type = 131 (0x83)
rfc1877_sec_dns_server_add
length = 6 (0x6)
ip_addr = 0 (0x0) (0.0.0.0)
num_recs2 = 5 (0x5)
sm_container[0]
container_id = 13 (0xd) (DNS Server IPv4 Address Requestt)
container_len = 0 (0x0)
sm_container[1]
container_id = 3 (0x3) (DNS Server IPv6 Address Request)
container_len = 0 (0x0)
sm_container[2]
container_id = 10 (0xa) (IP address allocation via NAS signalling)
container_len = 0 (0x0)
sm_container[3]
container_id = 5 (0x5) (NWK Req Bearer Control indicator)
container_len = 0 (0x0)
sm_container[4]
container_id = 16 (0x10) (Ipv4 Link MTU Request)
container_len = 0 (0x0)
dev_properties_incl = 0 (0x0)
nbifom_incl = 0 (0x0)
header_compression_config_inclu = 0 (0x0)
ext_prot_config_incl = 0 (0x0)
p_tmsi_sig_incl = 0 (0x0)
add_guti_incl = 0 (0x0)
reg_tai_incl = 1 (0x1)
tracking_area_id
mcc_mnc
mcc_1 = 7 (0x7)
mcc_2 = 1 (0x1)
mcc_3 = 6 (0x6)
mnc_3 = 15 (0xf)
mnc_1 = 1 (0x1)
mnc_2 = 7 (0x7)
tracking_area_id = 22 (0x16)
drx_params_incl = 1 (0x1)
drx_params
split_pg_cycle_code = 10 (0xa)
cycle_len_coeff = 0 (0x0)
split_on_ccch = 0 (0x0)
non_drx_timer = 0 (0x0)
ms_netwk_cap_incl = 1 (0x1)
ms_netwk_cap
length = 3 (0x3)
r99 = 1 (0x1)
GEA1 bits
GEA/1 = 1 (0x1)
SM capabilities via dedicated channels = 1 (0x1)
SM capabilities via GPRS channels = 1 (0x1)
UCS2 support = 0 (0x0)
SS Screening Indicator = 1 (0x1)
SoLSA Capability = 0 (0x0)
Revision level indicator = 1 (0x1)
PFC feature mode = 1 (0x1)
Extended GEA bits
GEA/2 = 1 (0x1)
GEA/3 = 1 (0x1)
GEA/4 = 0 (0x0)
GEA/5 = 0 (0x0)
GEA/6 = 0 (0x0)
GEA/7 = 0 (0x0)
LCS VA capability = 0 (0x0)
PS inter-RAT HO from GERAN to UTRAN Iu mode capability = 0 (0x0)
PS inter-RAT HO from GERAN to E-UTRAN S1 mode capability = 0 (0x0)
EMM Combined procedures Capability = 1 (0x1)
ISR support = 1 (0x1)
SRVCC to GERAN/UTRAN capability = 1 (0x1)
EPC capability = 1 (0x1)
NF capability = 1 (0x1)
spare_bits0_count = 1 (0x1)
spare_bits0 = 0 (0x0)
old_loc_area_id_incl = 1 (0x1)
old_loc_area_id
mcc_1 = 7 (0x7)
mcc_2 = 1 (0x1)
mcc_3 = 6 (0x6)
mnc_3 = 15 (0xf)
mnc_1 = 1 (0x1)
mnc_2 = 7 (0x7)
loc_area_code = 30112 (0x75a0)
tmsi_stat_incl = 0 (0x0)
ms_class_mark2_incl = 1 (0x1)
ms_class_mark2
rev_level = 2 (0x2)
es_ind = 1 (0x1)
a5_1_alg_sup = 0 (0x0)
rf_power_cap = 7 (0x7)
pseudo_sync_cap = 1 (0x1)
ss_screen_ind = 1 (0x1)
sm_cap = 1 (0x1)
vbs = 0 (0x0)
vgcs = 0 (0x0)
freq_cap = 0 (0x0)
class_3_avail = 1 (0x1)
lcsva_cap = 1 (0x1)
ucs2 = 0 (0x0)
solsa = 0 (0x0)
cmsp = 1 (0x1)
a5_3_alg_sup = 1 (0x1)
a5_2_alg_sup = 0 (0x0)
ms_class_mark3_incl = 1 (0x1)
ms_class_mark3
spare_bit0 = 0 (0x0)
const_110 = 6 (0x6)
A5 bits struct
A5/7 = 0 (0x0)
A5/6 = 0 (0x0)
A5/5 = 0 (0x0)
A5/4 = 0 (0x0)
Associated Radio Capability 2 = 1 (0x1)
Associated Radio Capability 1 = 4 (0x4)
r_support_present = 0 (0x0)
hscsd_multi_slot_capability_present = 0 (0x0)
UCS2 treatment = 0 (0x0)
Extended Measurement Capability = 0 (0x0)
ms_measurement_capability_present = 0 (0x0)
ms_positioning_method_capability_present = 1 (0x1)
MS Positioning Method Capability
MS Positioning Method = 7 (0x7)
ecsd_multi_slot_capability_present = 0 (0x0)
gsm_8_psk_struct_present = 1 (0x1)
gsm 8-PSK Struct
Modulation Capability = 1 (0x1)
gsm_8_psk_rf_power_capability_1_present = 1 (0x1)
gsm 8-PSK RF Power Capability 1 = 2 (0x2)
gsm_8_psk_rf_power_capability_2_present = 1 (0x1)
gsm 8-PSK RF Power Capability 2 = 2 (0x2)
gsm_400_bands_supported_present = 0 (0x0)
gsm_850_associated_radio_capability_present = 1 (0x1)
GSM 850 Associated Radio Capability = 4 (0x4)
gsm_1900_associated_radio_capability_present = 1 (0x1)
GSM 1900 Associated Radio Capability = 1 (0x1)
UMTS FDD Radio Access Technology Capability = 1 (0x1)
UMTS 3.84 Mcps TDD Radio Access Technology Capability = 0 (0x0)
CDMA 2000 Radio Access Technology Capability = 0 (0x0)
dtm_gprs_multi_slot_class_present = 1 (0x1)
DTM GPRS Multi Slot Class = 3 (0x3)
Single Slot DTM = 0 (0x0)
dtm_egprs_multi_slot_class_present = 1 (0x1)
DTM EGPRS Multi Slot Class = 3 (0x3)
single_band_support_present = 0 (0x0)
gsm_750_associated_radio_capability_present = 0 (0x0)
UMTS 1.28 Mcps TDD Radio Access Technology Capability = 0 (0x0)
GERAN Feature Package 1 = 1 (0x1)
extended_dtm_gprs_multi_slot_class_present = 0 (0x0)
high_multislot_capability_present = 0 (0x0)
geran_iu_mode_capabilities_present = 0 (0x0)
GERAN Feature Package 2 = 0 (0x0)
GMSK Multislot Power Profile = 3 (0x3)
gsm 8-PSK Multislot Power Profile = 3 (0x3)
t_gsm_400_bands_supported_present = 0 (0x0)
t_gsm_900_associated_radio_capability_present = 0 (0x0)
Downlink Advanced Receiver Performance = 1 (0x1)
DTM Enhancements Capability = 1 (0x1)
dtm_gprs_high_multi_slot_class_present = 0 (0x0)
Repeated ACCH Capability = 1 (0x1)
gsm_710_associated_radio_capability_present = 0 (0x0)
t_gsm_810_associated_radio_capability_present = 0 (0x0)
Ciphering Mode Setting Capability = 1 (0x1)
Additional Positioning Capabilities = 0 (0x0)
E-UTRA FDD support = 1 (0x1)
E-UTRA TDD support = 0 (0x0)
E-UTRA Measurement and Reporting support = 1 (0x1)
Priority-based reselection support = 1 (0x1)
UTRA CSG Cells Reporting = 0 (0x0)
VAMOS Level = 0 (0x0)
spare_bits0_count = 9 (0x9)
spare_bits0 = 128 (0x80)
supp_codecs_incl = 1 (0x1)
supp_codecs
num_codecs = 2 (0x2)
codecs[0]
sysid = 4 (0x4)
length = 2 (0x2)
bitmap[0] = 96 (0x60)
bitmap[1] = 0 (0x0)
codecs[1]
sysid = 0 (0x0)
length = 2 (0x2)
bitmap[0] = 31 (0x1f)
bitmap[1] = 0 (0x0)
add_update_type_incl = 0 (0x0)
voice_domain_pref_incl = 1 (0x1)
voice_domain_pref
length = 1 (0x1)
UE_usage_setting = 0 (0x0) (Voice centric)
voice_domain_pref_for_EUTRAN = 0 (0x0) (CS Voice only)
dev_properties_incl = 0 (0x0)
old_guti_incl = 1 (0x1)
old_guti
guti_type = 0 (0x0) (Native GUTI)
ms_network_feature_incl = 1 (0x1)
ms_network_feature_support
ext_periodic_timers = 1 (0x1)
network_resource_id_container_incl = 0 (0x0)
t3324_incl = 0 (0x0)
t3412_ext_incl = 0 (0x0)
ext_drx_par_incl = 0 (0x0)
2.BS>>>MS编辑本段
同时网络在attach accept时也会告知终端网络是否支持volte(eps_netwk_feature_support)
2017 Apr 26 15:25:33.663 [27] 0xB0EC LTE NAS EMM Plain OTA Incoming Message -- Attach accept Msg
pkt_version = 1 (0x1)
rel_number = 9 (0x9)
rel_version_major = 5 (0x5)
rel_version_minor = 0 (0x0)
security_header_or_skip_ind = 0 (0x0)
prot_disc = 7 (0x7) (EPS mobility management messages)
msg_type = 66 (0x42) (Attach accept)
lte_emm_msg
emm_attach_accept
attach_result = 2 (0x2) (comb EPS/IMSI attach)
t3412
unit = 2 (0x2)
timer_value = 9 (0x9)
tai_list
num_tai_list = 1 (0x1)
tai_list[0]
list_type = 2 (0x2)
num_element = 0 (0x0)
type2[0]
mcc_mnc
mcc_1 = 7 (0x7)
mcc_2 = 1 (0x1)
mcc_3 = 6 (0x6)
mnc_3 = 15 (0xf)
mnc_1 = 1 (0x1)
mnc_2 = 7 (0x7)
tac = 22 (0x16)
esm_msg_container
eps_bearer_id_or_skip_id = 5 (0x5)
prot_disc = 2 (0x2) (EPS session management messages)
trans_id = 12 (0xc)
msg_type = 193 (0xc1) (Activate default EPS bearer context request)
lte_esm_msg
act_def_eps_bearer_context_req
eps_qos
qci = 5 (0x5) (QC5)
oct4_incl = 0 (0x0)
oct5_incl = 0 (0x0)
oct6_incl = 0 (0x0)
oct7_incl = 0 (0x0)
oct8_incl = 0 (0x0)
oct9_incl = 0 (0x0)
oct10_incl = 0 (0x0)
oct11_incl = 0 (0x0)
oct12_incl = 0 (0x0)
oct13_incl = 0 (0x0)
oct14_incl = 0 (0x0)
oct15_incl = 0 (0x0)
access_point
num_acc_pt_val = 23 (0x17)
acc_pt_name_val[0] = 3 (0x3) (length)
acc_pt_name_val[1] = 73 (0x49) (I)
acc_pt_name_val[2] = 77 (0x4d) (M)
acc_pt_name_val[3] = 83 (0x53) (S)
acc_pt_name_val[4] = 6 (0x6) (length)
acc_pt_name_val[5] = 77 (0x4d) (M)
acc_pt_name_val[6] = 78 (0x4e) (N)
acc_pt_name_val[7] = 67 (0x43) (C)
acc_pt_name_val[8] = 48 (0x30) (0)
acc_pt_name_val[9] = 49 (0x31) (1)
acc_pt_name_val[10] = 55 (0x37) (7)
acc_pt_name_val[11] = 6 (0x6) (length)
acc_pt_name_val[12] = 77 (0x4d) (M)
acc_pt_name_val[13] = 67 (0x43) (C)
acc_pt_name_val[14] = 67 (0x43) (C)
acc_pt_name_val[15] = 55 (0x37) (7)
acc_pt_name_val[16] = 49 (0x31) (1)
acc_pt_name_val[17] = 54 (0x36) (6)
acc_pt_name_val[18] = 4 (0x4) (length)
acc_pt_name_val[19] = 71 (0x47) (G)
acc_pt_name_val[20] = 80 (0x50) (P)
acc_pt_name_val[21] = 82 (0x52) (R)
acc_pt_name_val[22] = 83 (0x53) (S)
pdn_addr
pdn_addr_len = 5 (0x5)
pdn_type = 1 (0x1) (IPv4)
ipv4_addr = 183631382 (0xaf1fe16) (10.241.254.22)
trans_id_incl = 1 (0x1)
trans_id
length = 1 (0x1)
ti_flag = 0 (0x0)
ti_value = 0 (0x0)
qos_incl = 1 (0x1)
qos
delay_class = 1 (0x1) (Delay class 1)
reliability_class = 3 (0x3) (Unacknowledged GTP and LLC; Acknowledged RLC, Protected data)
peak_throughput = 7 (0x7) (Up to 64 000 octet/s)
precedence_class = 1 (0x1) (High priority)
mean_throughput = 31 (0x1f) (Best effort)
traffic_class = 3 (0x3) (Interactive class)
delivery_order = 2 (0x2) (Without delivery order ('no'))
delivery_err_sdu = 1 (0x1) (No detect ('-'))
max_sdu_size = 150 (0x96) (1500 octets)
max_bitrate_uplink = 120 (0x78) (512 kbps)
max_bitrate_downlink = 120 (0x78) (512 kbps)
residual_ber = 7 (0x7) (1*10^(-5))
sdu_error_ratio = 4 (0x4) (1*10^(-4))
transfer_delay = 10 (0xa) (100 ms)
traffic_hand_pri = 1 (0x1) (Priority level 1)
guar_bitrate_uplink = 255 (0xff) (0kbps)
guar_bitrate_downlink = 255 (0xff) (0kbps)
signalling_ind = 1 (0x1) (Optimised for signalling traffic)
source_stat_desc = 0 (0x0) (spare)
downlink_ext_incl = 1 (0x1)
max_bitrate_downlink_ext = 0 (0x0) (Use value in oct 9)
guar_bitrate_downlink_ext = 0 (0x0) (Use value in oct 13)
uplink_ext_incl = 1 (0x1)
max_bitrate_uplink_ext = 0 (0x0) (Use value in oct 8)
guar_bitrate_uplink_ext = 0 (0x0) (Use value in oct 12)
llc_sapi_incl = 1 (0x1)
llc_sapi
llc_sapi_value = 3 (0x3)
radio_priority_incl = 1 (0x1)
radio_priority
radio_pri_val = 2 (0x2)
pkt_flow_id_incl = 1 (0x1)
pkt_flow_id
length = 1 (0x1)
packet_flow_id = 8 (0x8)
apn_ambr_incl = 1 (0x1)
apn_ambr
apn_ambr_dl = 120 (0x78) (512 kbps)
apn_ambr_ul = 120 (0x78) (512 kbps)
oct5_incl = 0 (0x0)
oct6_incl = 0 (0x0)
oct7_incl = 0 (0x0)
oct8_incl = 0 (0x0)
esm_cause_incl = 1 (0x1)
esm_cause
esm_cause = 50 (0x32) (PDN type IPv4 only allowed)
prot_config_incl = 1 (0x1)
prot_config
ext = 1 (0x1)
conf_prot = 0 (0x0)
num_recs = 1 (0x1)
sm_prot[0]
protocol_id = 32801 (0x8021) (IPCP)
prot_len = 16 (0x10)
ipcp_prot
ipcp_prot_id = 3 (0x3) (CONF_NAK)
identifier = 0 (0x0)
rfc1332_conf_nak
num_options = 2 (0x2)
conf_options[0]
type = 129 (0x81)
rfc1877_primary_dns_server_add
length = 6 (0x6)
ip_addr = 3131081696 (0xbaa083e0) (186.160.131.224)
conf_options[1]
type = 131 (0x83)
rfc1877_sec_dns_server_add
length = 6 (0x6)
ip_addr = 3131058656 (0xbaa029e0) (186.160.41.224)
num_recs2 = 2 (0x2)
sm_container[0]
container_id = 13 (0xd) (DNS Server IPv4 Address)
container_len = 4 (0x4)
container_contents[0] = 186 (0xba)
container_contents[1] = 160 (0xa0)
container_contents[2] = 131 (0x83)
container_contents[3] = 224 (0xe0)
sm_container[1]
container_id = 5 (0x5) (Selected Bearer Control Mode)
container_len = 1 (0x1)
container_contents[0] = 2 (0x2)
connectivity_type_incl = 0 (0x0)
wlan_offload_acceptability_incl = 0 (0x0)
nbifom_incl = 0 (0x0)
header_compression_config_inclu = 0 (0x0)
ctrl_plane_only_ind_incl = 0 (0x0)
ext_prot_config_incl = 0 (0x0)
serv_plmn_rate_ctrl_incl = 0 (0x0)
guti_incl = 1 (0x1)
guti
id_type = 6 (0x6) (GUTI)
odd_even_ind = 0 (0x0)
Guti_1111 = 15 (0xf)
mcc_1 = 7 (0x7)
mcc_2 = 1 (0x1)
mcc_3 = 6 (0x6)
mnc_3 = 15 (0xf)
mnc_1 = 1 (0x1)
mnc_2 = 7 (0x7)
MME_group_id = 32769 (0x8001)
MME_code = 16 (0x10)
m_tmsi = 3397527772 (0xca8228dc)
loc_id_incl = 1 (0x1)
loc_area_id
mcc_1 = 7 (0x7)
mcc_2 = 1 (0x1)
mcc_3 = 6 (0x6)
mnc_3 = 15 (0xf)
mnc_1 = 1 (0x1)
mnc_2 = 7 (0x7)
loc_area_code = 30112 (0x75a0)
ms_id_incl = 1 (0x1)
ms_id
id_type_check = 4 (0x4)
ident_type = 4 (0x4)
odd_even_ind = 0 (0x0)
tmsi_1111 = 15 (0xf)
num_tmsi_ident = 4 (0x4)
tmsi_ident[0] = 80 (0x50)
tmsi_ident[1] = 6 (0x6)
tmsi_ident[2] = 162 (0xa2)
tmsi_ident[3] = 36 (0x24)
emm_cause_incl = 0 (0x0)
T3402_incl = 0 (0x0)
T3423_incl = 0 (0x0)
equ_plmns_incl = 0 (0x0)
emergnecy_num_list_incl = 0 (0x0)
eps_netwk_feature_support_incl = 1 (0x1)
eps_netwk_feature_support
length = 1 (0x1)
CPCIoT = 0 (0x0)
ERwoPDN = 0 (0x0)
ESRPS = 0 (0x0)
CS_LCS = 0 (0x0) (No info about support of loc service via cs is available)
EPC_LCS = 0 (0x0) (Location Services via EPC not supported)
EMC_BS = 0 (0x0) (Emergency bearer services in S1 Mode not supported)
IMSVoPS = 1 (0x1) (IMS Vo PS Session in S1 Mode supported)--网络支持
add_update_result_incl = 0 (0x0)
t3412_ext_incl = 0 (0x0)
t3324_incl = 0 (0x0)
ext_drx_par_incl = 0 (0x0)
3.高通回复编辑本段
From logs,
[0051/0002] | MSG | 15:25:33.772 | IMS/High | [ RegisterManager.cpp 3945] EventChangeRat: permanently blocked due to test mode 0 or m_bIMSDisabledInRoaming 0 or DisabledInCSOnly 1 | | | | |
m_bIMSDisabledInCSOnly is true, so device not sending Registration.
Please use proper MBN, NV66048 should set to 3.
QXDM Log补充编辑本段
[0051/0002] | MSG | 15:25:32.755 | IMS/High | [ RegisterManager.cpp 1351] Power Up received
[0051/0002] | MSG | 15:25:32.774 | IMS/High | [ RegisterManager.cpp 3773] RegisterManager ===== Start
[0051/0002] | MSG | 15:25:32.774 | IMS/High | [ RegisterManager.cpp 4306] CheckValidSim: RegType[0]
[0051/0002] | MSG | 15:25:32.774 | IMS/High | [ RegisterManager.cpp 4347] CheckRegistrationNeeded: RegType[0]
[0051/0002] | MSG | 15:25:32.774 | IMS/High | [ RegisterManager.cpp 4306] CheckValidSim: RegType[0]
[0051/0002] | MSG | 15:25:32.774 | IMS/High | [ RegisterManager.cpp 4407] CheckRegistrationNeeded - CS only voice domain:1,RegType[0]
[0051/0002] | MSG | 15:25:33.771 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:25:33.771 | IMS/High | [ RegisterManager.cpp 3646] update: QPE_RM_NOTIFY_SINGO_CONFIG_UPDATED, RegType[0] oprtMode[2]
[0051/0002] | MSG | 15:25:33.772 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:25:33.772 | IMS/High | [ RegisterManager.cpp 2300] update: RAT changed to 10, RegType[0]
[0051/0002] | MSG | 15:25:33.772 | IMS/High | [ RegisterManager.cpp 3934] EventChangeRat: NewRat = 10, RegType[0]
[0051/0001] | MSG | 15:25:33.772 | IMS/Medium | [ RegisterManager.cpp 4332] CRegisterManager::IsIMSDisabledonRoaming: returning[0]
[0051/0002] | MSG | 15:25:33.772 | IMS/High | [ RegisterManager.cpp 3945] EventChangeRat: permanently blocked due to test mode 0 or m_bIMSDisabledInRoaming 0 or DisabledInCSOnly 1
[0051/0002] | MSG | 15:25:51.920 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:25:51.920 | IMS/High | [ RegisterManager.cpp 3646] update: QPE_RM_NOTIFY_SINGO_CONFIG_UPDATED, RegType[0] oprtMode[2]
[0051/0002] | MSG | 15:25:51.921 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:25:51.921 | IMS/High | [ RegisterManager.cpp 2300] update: RAT changed to 14, RegType[0]
[0051/0001] | MSG | 15:26:12.794 | IMS/Medium | [ RegisterManager.cpp 1501] GenericTaskEventHandler: QPE_RM_WCDMA_CALL_ACTIVE_EV
[0051/0001] | MSG | 15:26:12.794 | IMS/Medium | [ RegisterManager.cpp 1703] isUEonWWAN currentRegisteredRAT 14
[0051/0001] | MSG | 15:26:12.794 | IMS/Medium | [ RegisterManager.cpp 1711] isUEonWWAN returning 1
[0051/0001] | MSG | 15:26:20.754 | IMS/Medium | [ RegisterManager.cpp 1518] GenericTaskEventHandler: QPE_RM_WCDMA_CALL_END_EV, oprt mode 2
[0051/0002] | MSG | 15:26:20.764 | IMS/High | [ RegisterManager.cpp 5289] GetCMCallListCallBack
[0051/0001] | MSG | 15:26:20.764 | IMS/Medium | [ RegisterManager.cpp 5296] GetCMCallListCallBack Num of calls 2
[0051/0002] | MSG | 15:26:20.768 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:26:20.768 | IMS/High | [ RegisterManager.cpp 3246] Update: QPE_RM_CM_CALL_LIST_RETRIEVED
[0051/0002] | MSG | 15:26:20.768 | IMS/High | [ RegisterManager.cpp 3426] CRegisterManager::update:call-id = 11, state = 3, sys_mode= 4
[0051/0002] | MSG | 15:26:20.768 | IMS/High | [ RegisterManager.cpp 3427] CRegisterManager::update:call-type = 2
[0051/0002] | MSG | 15:26:20.768 | IMS/High | [ RegisterManager.cpp 3426] CRegisterManager::update:call-id = 12, state = 3, sys_mode= 4
[0051/0002] | MSG | 15:26:20.768 | IMS/High | [ RegisterManager.cpp 3427] CRegisterManager::update:call-type = 2
[0051/0001] | MSG | 15:26:20.768 | IMS/Medium | [ RegisterManager.cpp 1772] handleWCDMACallEnd isWcdmaCallActive[1]
[0051/0001] | MSG | 15:26:20.771 | IMS/Medium | [ RegisterManager.cpp 1790] handleWCDMACallEnd: GSM call active 0
[0051/0002] | MSG | 15:26:20.771 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:26:20.771 | IMS/High | [ RegisterManager.cpp 3646] update: QPE_RM_NOTIFY_SINGO_CONFIG_UPDATED, RegType[0] oprtMode[2]
[0051/0002] | MSG | 15:26:20.771 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:26:20.771 | IMS/High | [ RegisterManager.cpp 2300] update: RAT changed to 14, RegType[0]
[0051/0002] | MSG | 15:26:20.771 | IMS/High | [ RegisterManager.cpp 3934] EventChangeRat: NewRat = 14, RegType[0]
[0051/0001] | MSG | 15:26:20.771 | IMS/Medium | [ RegisterManager.cpp 4332] CRegisterManager::IsIMSDisabledonRoaming: returning[0]
[0051/0002] | MSG | 15:26:20.771 | IMS/High | [ RegisterManager.cpp 3945] EventChangeRat: permanently blocked due to test mode 0 or m_bIMSDisabledInRoaming 0 or DisabledInCSOnly 1
[0051/0002] | MSG | 15:26:22.702 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:26:22.703 | IMS/High | [ RegisterManager.cpp 3646] update: QPE_RM_NOTIFY_SINGO_CONFIG_UPDATED, RegType[0] oprtMode[2]
[0051/0002] | MSG | 15:26:22.703 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:26:22.703 | IMS/High | [ RegisterManager.cpp 2300] update: RAT changed to 10, RegType[0]
[0051/0002] | MSG | 15:26:22.703 | IMS/High | [ RegisterManager.cpp 3934] EventChangeRat: NewRat = 10, RegType[0]
[0051/0001] | MSG | 15:26:22.703 | IMS/Medium | [ RegisterManager.cpp 4332] CRegisterManager::IsIMSDisabledonRoaming: returning[0]
[0051/0002] | MSG | 15:26:22.703 | IMS/High | [ RegisterManager.cpp 3945] EventChangeRat: permanently blocked due to test mode 0 or m_bIMSDisabledInRoaming 0 or DisabledInCSOnly 1
[0051/0002] | MSG | 15:26:39.594 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:26:39.594 | IMS/High | [ RegisterManager.cpp 3646] update: QPE_RM_NOTIFY_SINGO_CONFIG_UPDATED, RegType[0] oprtMode[2]
[0051/0002] | MSG | 15:26:39.594 | IMS/High | [ RegisterManager.cpp 2251] update, RegType[0]
[0051/0002] | MSG | 15:26:39.594 | IMS/High | [ RegisterManager.cpp 2300] update: RAT changed to 0, RegType[0]
[0051/0002] | MSG | 15:26:39.594 | IMS/High | [ RegisterManager.cpp 3934] EventChangeRat: NewRat = 0, RegType[0]
[0051/0001] | MSG | 15:26:39.595 | IMS/Medium | [ RegisterManager.cpp 4332] CRegisterManager::IsIMSDisabledonRoaming: returning[0]
[0051/0002] | MSG | 15:26:39.595 | IMS/High | [ RegisterManager.cpp 3945] EventChangeRat: permanently blocked due to test mode 0 or m_bIMSDisabledInRoaming 0 or DisabledInCSOnly 1
[0051/0001] | MSG | 15:26:45.535 | IMS/Medium | [ RegisterManager.cpp 4148] EnableRegInLPMTimerCallBack: Timer fired
[0051/0002] | MSG | 15:26:45.535 | IMS/High | [ RegisterManager.cpp 4162] EnableRegInLpmMode: Power down flag 1
[0051/0002] | MSG | 15:26:45.542 | IMS/High | [ RegisterManager.cpp 3773] RegisterManager ===== Start
[0051/0002] | MSG | 15:26:45.542 | IMS/High | [ RegisterManager.cpp 4306] CheckValidSim: RegType[0]
[0051/0002] | MSG | 15:26:45.542 | IMS/High | [ RegisterManager.cpp 4347] CheckRegistrationNeeded: RegType[0]
[0051/0002] | MSG | 15:26:45.542 | IMS/High | [ RegisterManager.cpp 4356] CheckRegistrationNeeded - Power down in progress...
附件列表
您所在的用户组无法下载或查看附件
Java-Android手机千人开发交流QQ群:38088312，PHP开发千人高级交流QQ群:50194090，欢迎加入学习！本站为
非赢利站点，挖掘网络资源，分享个人兴趣，如有侵犯您的版权，请联系我们，我们会第一时间删除内容或添加转载出处，敬请谅解！
如果您认为本词条还有待完善，请 编辑
上一篇 LTE网络和VoLTE终端如何相互通知对方具备VoLTE能力 下一篇 【Crash】com.android.phone GsmServiceStateTracker Crash
